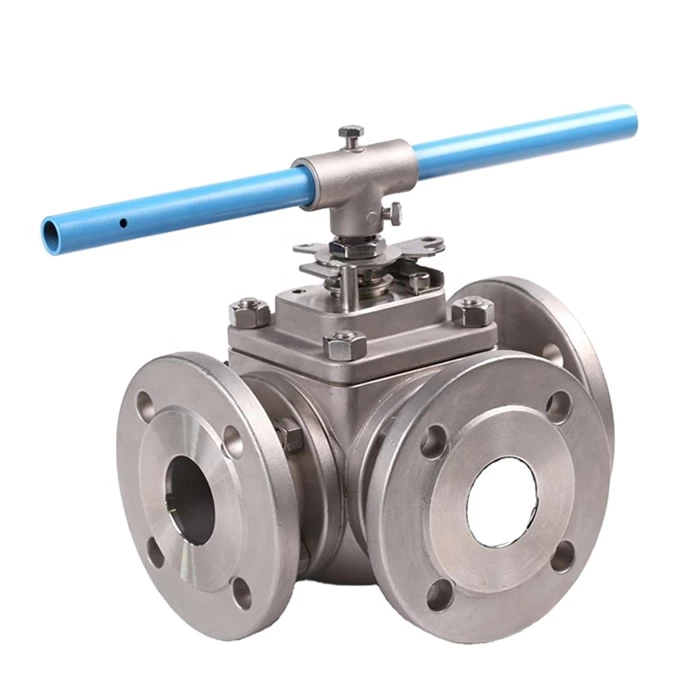

3 Way Ball Valve
- Design Standard
- ANSI B16.1
- Temperature Range
- -20 to 180 degree Celsius
- Size
- DN50 to DN1200; 2″ to 48″
- Pressure Rating
- ANSI CL 150 to 300 , PN16
- End Connections
- Flange ASME B16.5/B16.47
Features of 3-way ball valves are as follows:
3-WAY BALL VALVE has two kinds of flow passage pattern:Type L(3-way and 2-port) and Type T (3-way and 3-port).The correct option is depended on your application.
RPTFE,PPL or HR seats with dual sealing.
Variety of actuating modes,such as by handle,by worm gear,pneumatic and electric actuator.
| FUNCTIONS | PARAMETERS |
|---|---|
| Item Name | Tree-way Ball Valve/3-way ball valve |
| Size | DN50 to DN1200; 2″ to 48″ |
| Pressure | ANSI Class 150 to ANSI 2500 |
| Material | A105, A350LF2, A182 F316, Duplex stainless steel and other high alloy |
| End Connection | Flange ASME B16.5/B16.47 |
| Temperature Range | -46 to 550°C |
| Operation Type | Manual, Gear Operated or actuated |
| OEM/ODM Service | Available |
| Payment&Shipping Terms | L/C; T/T(30% deposit, 70% against B/L copy) |
| Shipping Port | Any port in China |
Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
